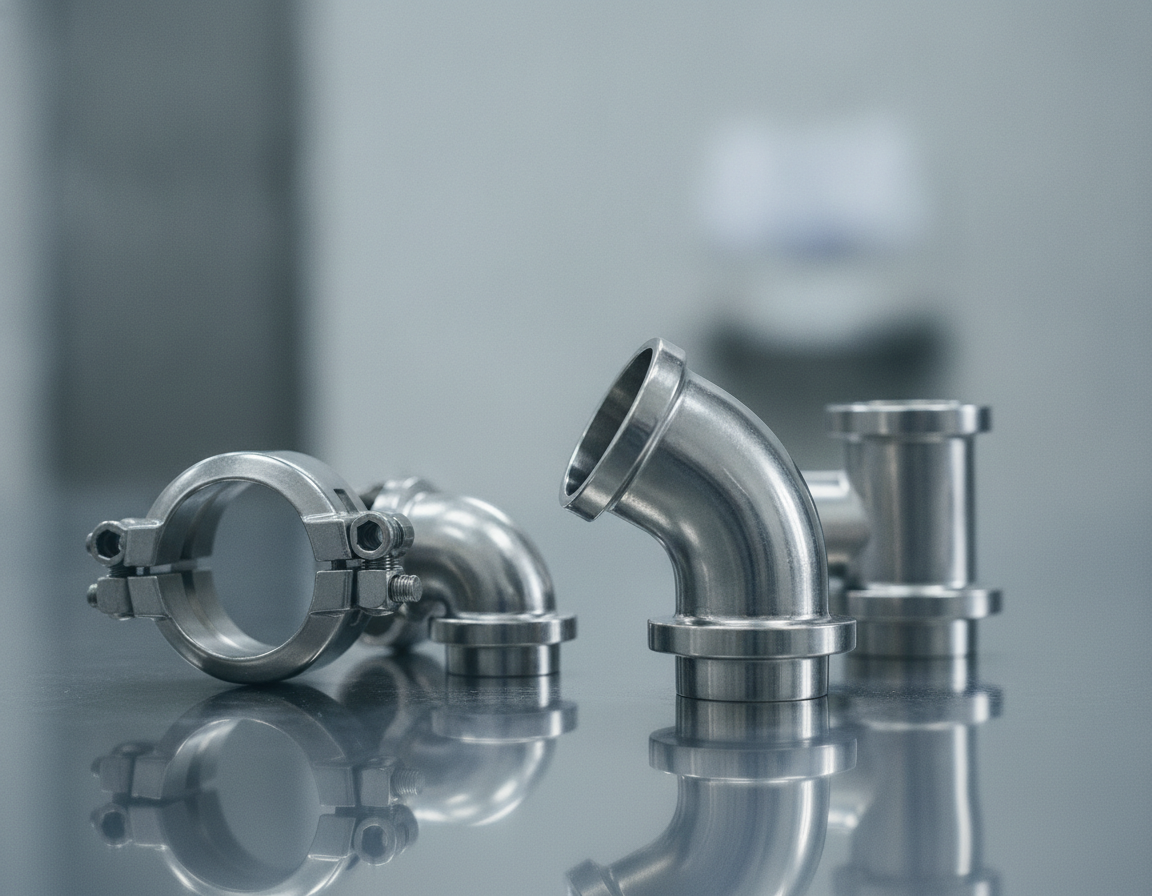

Stainless steel sanitary pipe fittings are vital in maintaining clean systems across multiple industries. These components, including ferrules, clamps, sanitary valves, and fittings, are engineered to keep fluid paths clean. They reduce contamination risk while making cleaning, inspection, and maintenance easier.
Tri-Clamp Fittings Catalog
The choice of Hygienic Fittings and Ss Sanitary Fittings has a direct effect on product safety, system uptime, and adherence to regulations. The material grade, surface finish, and compatibility of connections are important factors. These details shape how easily the system can be cleaned, validated, and maintained.
Operations teams benefit from reliable suppliers and detailed catalogs when choosing the correct parts. Brands like CSI and distributors such as Installation Parts Supply supply essential information. Their catalog listings, lead times, and customer reviews can inform purchasing decisions for Sanitary Valves And Fittings.
Key Takeaways
- Stainless Steel Sanitary Pipe Fittings support contamination control in clean process systems.
- Cleanability and corrosion resistance are influenced by material grade and surface finish.
- Hygienic Fittings compatibility reduces downtime during maintenance and upgrades.
- Catalogs and reviews from CSI and Installation Parts Supply support dependable sourcing.
- Proper selection of Sanitary Valves And Fittings improves regulatory compliance and product quality.
Overview Of Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Sanitary systems depend on components designed for safety and efficiency. A sanitary fitting should feature smooth surfaces, tight seals, and accessible cleaning points. These features are important for preventing contamination and supporting clean-in-place and sterilize-in-place routines.
What Sanitary Fittings Are Designed To Do
Sanitary fittings, also known as hygienic fittings, create crevice-free connections. That design reduces bacterial growth and helps maintain product purity during transfer and processing. Their design enables faster cleaning while reducing cross-contamination risk.
Industries That Use Hygienic Fittings
Food processors use hygienic fittings to support safety standards and reduce spoilage risk. Beverage manufacturers use these fittings to protect flavor, clarity, and shelf life. Pharmaceutical plants choose fittings that meet strict regulatory requirements.
Biotech facilities need precise sanitary connections for fermentation, cell culture, and bioprocessing. These industries prioritize traceability, repeatable cleaning, and compatible materials.
Why Stainless Steel Works Best For Hygienic Systems
Stainless steel is widely chosen because it delivers corrosion resistance, mechanical strength, and easy cleanability. Grades like 304 and 316L resist chemicals and high temperatures. They also support smooth finishes, low Ra values, and electropolished surfaces.
Stainless components help minimize bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces simplify assembly, inspection, and maintenance in hygienic systems.
Guide To Stainless Steel Sanitary Pipe Fittings
Stainless steel sanitary pipe fittings are important in modern clean systems for food, beverage, and pharmaceutical industries. Choosing the right material, component type, and surface finish limits contamination risk and makes cleaning easier. This section covers common stainless grades, component families, and surface finish options for hygienic performance.
Common Materials And Grades Used
Type 304 stainless steel is known for its corrosion resistance and mechanical strength, making it suitable for general processing lines. It is commonly used for tanks, structural supports, and areas where product-contact risk is lower.
Type 316L provides higher resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching stainless grades across components helps maintain corrosion resistance and reduce galvanic issues at connections. Specifying 304 or 316L at the design stage makes easier the procurement of SS Sanitary Fittings and associated parts.
Common Product Types And Their Roles
Ferrules serve as the basic connection points for butt-weld and weld-in assemblies. They are typically available in 304 or 316L with polished internal diameters to match process piping requirements.
Two-piece clamps, known as Tri-Clamp or Tri-Clover style, enable quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings support smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings connect flexible transfer lines and permanent piping. Sanitary Valves And Fittings control flow while maintaining cleanable contours. Designing with compatible SS Sanitary Fittings helps lower leaks, downtime, and maintenance problems.
Surface Finish Importance For Cleanability
Surface roughness changes how residues adhere. A 32RA internal finish is a common spec that balances cost and cleanability for most food and beverage applications.
Electropolishing further smooths the stainless surface and improves passivity. This treatment helps minimize microbial harborage and improves corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When components share 32RA or electropolished surfaces, cleaning validation becomes more repeatable.
| Part | Usual Material | Common Finish | Main Use |
|---|---|---|---|
| Butt-weld and weld-in ferrules | 304 or 316L | 32RA internal/external finish | Welded transitions, pipe ends |
| Two-piece clamps Tri-Clamp | 316L for demanding use | 32RA or electropolished | Fast sanitary assembly and disassembly |
| Weld fittings and couplings | 304 / 316L | Standard 32RA or electropolished | Welded joins and directional changes |
| Sanitary Hose Fittings | 316L often specified | Electropolished product-contact surfaces | Hose-to-pipe transfer connections |
| Hygienic valves and fittings | 316L commonly used for product-contact areas | Smooth polished flow paths | Cleanable flow control in process lines |
Triclover Fitting Options And Tri-Clamp Catalog Guidance
Tri Clover Pipe Fittings align with strict dimensional standards, ensuring compatibility across manufacturers. DIN 32676 and DIN 11864-3A set ferrule face geometry and clamp interfaces. These standards help sanitary lines remain leak-resistant, cleanable, and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When perusing a Tri-Clamp Fittings Catalog, focus on size ranges, material specifications, and surface finishes. Catalogs typically list two-piece clamps from 0.25″ to 4″, along with single-pin designs and corresponding gaskets. Ferrules are usually shown with length, material, and finish details, with 304 and 316L 32RA options common for improved cleanability.
Key items in catalogs cover clamps, ferrules, and gasket sets, sized in inches or DN. Prices for small two-piece clamps start under ten dollars, while larger clamps are in the low double digits. Each Triclover Fitting listing should show OAL, ID/OD finish, gasket compatibility, and material grade. This helps ensure the correct part is chosen at the time of order.
For high-pressure applications, double-bolt or heavy-duty two-piece clamps are available. These clamps may use a 304 stainless body with brass nuts to balance strength, corrosion resistance, and tightening performance. For critical process lines, choose high-pressure clamps by rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
Material choice affects service life, cleanability, and corrosion resistance. 316L ferrules provide better chloride resistance in harsh or chemically aggressive environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This supports the selection of Tri Clover Pipe Fittings based on process conditions and application requirements.
Spec sheets should include clamp size charts, ferrule dimensions, and part numbers to streamline procurement. A well-organized catalog facilitates quick replacement of Triclover Fittings, minimizing downtime. Seek suppliers that provide detailed specs for each Tri Clover Fitting to ensure interchangeability across brands.
CSI Sanitary Fittings Compatibility And Sanitary Connections
Sanitary connections are essential for joining pipes, valves, pumps, and equipment in clean systems. The right joint type is essential for maintaining hygiene and efficiency. This section reviews common connection styles, brand interchangeability, and supplier reliability feedback.
There are several connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each type has its own strengths and limitations regarding assembly speed, cleanability, and leak risk.
Clamp connections are preferred for their quick assembly and ease of disassembly for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are appropriate for low-risk applications where product contact is not a concern. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility is important when mixing components. CSI Sanitary Fittings and Csi Fittings use common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien publishes specification sheets that help confirm compatibility with major Tri-Clamp systems when the standards match.
To verify compatibility, match the nominal size, sealing face, material grade, and surface finish. Verify standards such as DIN 32676 and DIN 11864 on datasheets. Mismatched finishes or grades can lead to corrosion or trap product residues.
Customer feedback provides practical insights into supplier reliability. Reviews for CSI often mention consistent part quality and fast shipping, with some buyers reporting next-day delivery on stock items. Other customers highlight responsive communication after order questions or technical inquiries.
When evaluating suppliers, consider lead times, documented quality, and after-sale support. Reliable shipping and clear spec sheets minimize downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Sanitary Connection | Best Use | Cleanability | Interchangeability Notes |
|---|---|---|---|
| Clamp-style sanitary connection | Lines requiring fast access for cleaning | High; gasketed seal easy to clean | Strong interchangeability when standards, faces, and sizes align |
| Welded sanitary connections | Permanent process runs requiring smooth internal bores | Excellent after correct weld finishing and polishing | Standardized dimensions ensure cross-brand fit for ferrules and couplings |
| Threaded | Utility lines and non-product-contact service | Moderate because threads may trap residue | Less common for sanitary product lines; check material and finish |
| Hose with Ferrule | Flexible transfer lines and temporary connections | Good if ferrule and clamp are matched | Compatibility depends on ferrule shape, gasket, and clamp match |
How To Select Sanitary Pipe Fittings Stainless And SS Sanitary Fittings
Selecting the correct sanitary components requires a focused review of size, material, finish, and pressure. This guide helps you match size, material, and finish to your process needs. Use the checks below to reduce downtime and support hygienic performance.
Start with size, designation, and connection standard. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog mappings include DN20, DN25, DN32, DN40, DN50, DN65, and DN100 matched to 0.25″–4″ Tri-Clamp sizes. Check mating surfaces, gasket groove styles, and flange faces to ensure compatibility.
Material selection is a critical part of sanitary fitting specification. For routine food and beverage lines, 304 meets strength and cleanability needs. For pharmaceutical or chloride-exposed processes, choose 316L for superior corrosion resistance and weldability. Most suppliers list 316L ferrules and fittings as standard options for harsh environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Review process pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure applications require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Copper Tri Clamp Fittings may be considered for specialized or niche applications. Copper tri clamp fittings deliver conductivity and antimicrobial benefits in select systems. Before pairing copper with stainless lines, validate compatibility with cleaning agents, product chemistry, and dissimilar-metal corrosion risk.
Final checks reduce costs. Compare catalog part numbers against DN TC inch equivalents, confirm material grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, clamp pressure, and part numbers to streamline spare-parts ordering and maintenance.
Best Practices For Installing And Maintaining Sanitary Coupling And Sanitary Weld Fittings
Ensuring the cleanliness and reliability of sanitary connections is essential. Follow specific steps for assembling tri-clamp assemblies and welded joints to avoid leaks and contamination. Keeping detailed records of materials, finishes, and maintenance is important for traceability and audits.
Best-practice assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces, ensuring the sealing surfaces are aligned. Next, fit the clamp and tighten by hand, then apply the specified torque with a calibrated wrench. For high-pressure applications, use double-bolt clamps with suitable hardware and follow recommended torque values to avoid over-compression.
Sanitary Weld Fittings best practices
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas for purging to prevent oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Regular sanitary maintenance
Implement CIP and SIP cycles as required by the process. Inspect ferrule faces, clamps, and gaskets after thermal cycles, production runs, and scheduled cleaning. Replace gaskets if they show signs of hardening, extrusion, or permanent deformation. After each maintenance activity, verify clamp torque, gasket seating, and alignment.
Troubleshooting common issues
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can create uneven compression and leaks. To correct this, loosen the assembly, realign it, and retighten to the specified torque. For gasket extrusion or failure, confirm the correct gasket material and durometer, and verify that groove dimensions match ferrule specifications.
Addressing surface damage
Surface damage such as scratches, pits, or crevice corrosion can trap microorganisms and residues. Minor scratches may be polished out and electropolished to restore the required Ra level. Components should be replaced if pitting penetrates the surface or if polishing would remove too much material.
Documentation and maintenance records
Maintain detailed records of material grades, surface finishes, gasket materials, clamp models, torque values, and service dates. Keep calibration records for torque tools, welding equipment, and inspection instruments. Accurate records strengthen regulatory compliance and expedite troubleshooting efforts.
| Task | Frequency | Main Step | Service Notes |
|---|---|---|---|
| Clamp torque check | After assembly and monthly | Check with calibrated torque wrench | Reference the correct torque table for each coupling size |
| Gasket inspection/replacement | Every 3 to 12 months or when failure occurs | Inspect for cuts, hardening, extrusion | Use matching material, profile, and durometer |
| Surface finish check | Every quarter or after welding | Measure Ra, inspect visually | Electropolish if Ra exceeds spec for hygienic areas |
| Sanitary weld inspection | After installation and during annual review | Check for undercut, porosity, discoloration, and profile | Rework and polish fittings when defects appear |
| CIP and SIP validation | Per process cycle | Record process parameters during each cycle | Keep records for traceability and audits |
Where To Buy Sanitary Fittings: Catalogs, CSI Fittings, And Installation Parts Supply
Starting with a detailed catalogue review is essential. Look for a Sanitary Fittings Catalog that lists material grade, surface finish, dimensions, and pressure rating. It should also reference standards such as DIN 32676 or DIN 11864-3A. Confirm item codes and stock status before ordering to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, compare clamp type, gasket compatibility, and dimensional specs. Check if ferrules and fittings have surface finishes like 32RA or electropolished. A detailed catalog keeps matching gaskets and clamps easier during assembly.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms for precision components to protect tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Catalog Item | Listed Size | Material Grade | Listed Finish | Catalog Price (USD) |
|---|---|---|---|---|
| Single-pin two-piece clamp | 0.25″–0.75″ | Type 304 stainless steel | Standard catalog finish | 3.91 USD |
| Two-piece single-pin clamp | 1 inch | 304 stainless | Standard catalog finish | 4.91 USD |
| Two-piece single-pin sanitary clamp | Two-inch size | 304 | Standard finish | $5.99 |
| Single-pin two-piece clamp | 2.5 inch | 304 | Standard catalog finish | Approx. $6.93 |
| Two-piece single-pin sanitary clamp | Three-inch size | 304 | Standard | $7.54 |
| Two-piece single-pin sanitary clamp | Four-inch size | Type 304 stainless steel | Standard | Approx. $9.16 |
| TC sanitary ferrule | 2″ — 1.125″ OAL | Type 316L stainless steel | 32RA ID and OD | $4.24 |
| Tri-Clamp ferrule | 2 inch with 1.125 inch OAL | Type 304 stainless steel | 32RA ID and OD | Approx. $4.06 |
| Tri-Clamp ferrule | 3 inch | Type 316L stainless steel | 32RA ID/OD | Approx. $6.15 |
| Double-bolt high-pressure clamp | 1.5 inch | Type 316 stainless steel | Polished sanitary finish | Approx. $12.93 |
| High-pressure double-bolt clamp | 2″ | Type 316 stainless steel | Polished finish | 14.62 USD |
| Double-bolt high-pressure clamp | Three-inch size | Type 316 stainless steel | Polished sanitary finish | 20.26 USD |
Installation Parts Supply is a U.S.-based source for sanitary valves, ferrules, and clamps. Use their online listings to confirm availability, surface finishes, material grades, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, focus on catalogs that show clear specs for 304 versus 316L, specify surface finish, and cite conforming standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Conclusion
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in food, beverage, pharmaceutical, biotech, and other hygienic industries. Choosing between 304 and 316L, along with finishes such as 32RA or electropolishing, directly supports cleanability. This minimizes contamination risks significantly. Ensuring Tri Clover Fittings and related parts meet standards such as DIN 32676 is important for tight Sanitary Connections and easier interchangeability.
When choosing fittings, evaluate material grade, surface finish, connection type, and pressure needs. This includes Tri-Clamp, weld, hose, or threaded connections, based on pressure, product contact, and regulatory requirements. High-pressure clamps should be used where necessary. Consistency in gaskets, clamps, and ferrules reduces leaks and simplifies maintenance. Proper installation and regular cleaning increase the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When looking for where to buy sanitary fittings, prioritize reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines streamlines system design and upkeep. Clear specifications, consistent materials, and reliable sources help minimize downtime. That helps protect product quality in hygienic processing environments.
